Dubbo 相关知识及使用(一)
|🐂框架
阅读量:
1
2
Dubbo官网地址：http://dubbo.apache.org
官网有详细的文档可供学习，并且有中文的。
节点 角色说明
Provider 暴露服务的服务提供方
Consumer 调用远程服务的服务消费方
Registry 服务注册与发现的注册中心
Monitor 统计服务的调用次数和调用时间的监控中心
Container 服务运行容器

简单的描述一下调用关系：

  1. 服务容器负责启动，加载，运行服务提供者。
  2. 服务提供者在启动时，向注册中心注册自己提供的服务。
  3. 服务消费者在启动时，向注册中心订阅自己所需的服务。
  4. 注册中心返回服务提供者地址列表给消费者，如果有变更，注册中心将基于长连接推送变更数 据给消费者。
  5. 服务消费者，从提供者地址列表中，基于软负载均衡算法，选一台提供者进行调用，如果调用 失败，再选另一台调用。
  6. 服务消费者和提供者，在内存中累计调用次数和调用时间，定时每分钟发送一次统计数据到监控中心。

Dubbo快速开发

环境准备:
1
2
3
4
5
6
7
create database dubbo;
CREATE TABLE `t_user` (
    `id` int(11) NOT NULL AUTO_INCREMENT,
    `name` varchar(20) DEFAULT NULL,
    `age` int(11) DEFAULT NULL,
    PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
创建父工程：

​ 父工程，不实现任何代码，主要是添加工程需要的库的依赖管理（DependencyManagement）， 依赖管理就是解决项目中多个模块间公共依赖的版本号、scope的控制范围。本项目需要使用spring-webmvc，使用dubbo（务必2.6.2以上版本）、zookeeper及其客户端（curator-framework）依赖库。

​ 修改pom.xml文件：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.frosro</groupId>
    <artifactId>dubbo_parent</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>dubbo_common</module>
        <module>dubbo_interface</module>
        <module>dubbo_provider</module>
        <module>dubbo_consumer</module>
    </modules>

    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <maven.compiler.compilerVersion>1.8</maven.compiler.compilerVersion>
        <mysql-connector-java.version>5.1.47</mysql-connector-java.version>
        <druid.version>1.1.20</druid.version>
        <mybatis.version>3.4.5</mybatis.version>
        <mybatis-spring.version>2.0.1</mybatis-spring.version>
        <spring.version>5.0.5.RELEASE</spring.version>
        <zookeeper.version>3.4.7</zookeeper.version>
        <curator.version>4.0.1</curator.version>
        <dubbo.version>2.6.2</dubbo.version>
        <servlet-api.version>2.5</servlet-api.version>
        <jackson.version>2.9.0</jackson.version>
        <slf4j.version>1.7.30</slf4j.version>
    </properties>

    <!--管理jar包, 在当前工程中不进行jar包加载, 只是管理版本-->
    <dependencyManagement>
        <dependencies>
            <!--与数据库相关的jar-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!--与Mybatis相关的-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>${mybatis.version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis-spring</artifactId>
                <version>${mybatis-spring.version}</version>
            </dependency>
            <!--Spring相关的jar-->
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-context</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-tx</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-jdbc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework</groupId>
                <artifactId>spring-webmvc</artifactId>
                <version>${spring.version}</version>
            </dependency>
            <!--dubbo,ZooKeeper相关的jar-->
            <dependency>
                <groupId>org.apache.zookeeper</groupId>
                <artifactId>zookeeper</artifactId>
                <version>${zookeeper.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.curator</groupId>
                <artifactId>curator-framework</artifactId>
                <version>${curator.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.curator</groupId>
                <artifactId>curator-recipes</artifactId>
                <version>${curator.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>dubbo</artifactId>
                <version>${dubbo.version}</version>
            </dependency>
            <!--servlet相关的jar-->
            <dependency>
                <groupId>javax.servlet</groupId>
                <artifactId>servlet-api</artifactId>
                <version>${servlet-api.version}</version>
                <scope>provided</scope>
            </dependency>
            <!--解析json相关的jar-->
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-core</artifactId>
                <version>${jackson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>${jackson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-annotations</artifactId>
                <version>${jackson.version}</version>
            </dependency>
            <dependency>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
                <version>${slf4j.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>
创建公共子模块：

​ 不选择工程模板，在父工程内部创建子模块，命名为 dubbo_common 。主要放公共类的定义，它是接口子模块的依赖模块。

pom.xml内容：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_parent</artifactId>
        <groupId>com.frosro</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>dubbo_common</artifactId>

</project>
在java文件夹下创建包：com.frosro.pojo，并添加User类：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
package com.frosro.pojo;

import java.io.Serializable;

/**
 * @author sy
 * @data 15:59
 */
public class User implements Serializable {//必须实现Serializable接口，序列化。为了网络传输。

    private Integer id;

    private String name;

    private String age;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAge() {
        return age;
    }

    public void setAge(String age) {
        this.age = age;
    }
}
创建接口子模块：
此模块，主要是放业务接口的定义，它是服务消费者模块和服务提供者模块的公共依赖模块。命名为:dubbo_interface，同样也是在父工程内部创建。
pom.xml文件：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_parent</artifactId>
        <groupId>com.frosro</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>dubbo_interface</artifactId>

    <dependencies>
        <dependency>
            <groupId>com.frosro</groupId>
            <artifactId>dubbo_common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

在java文件夹下创建com.frosro.service包，并创建接口类：UserService

1
2
3
4
5
6
7
8
9
10
11
12
13
package com.frosro.service;

import com.frosro.pojo.User;

/**
 * @author sy
 * @data 16:03
 */
public interface UserService {

    User findById(Integer id);

}

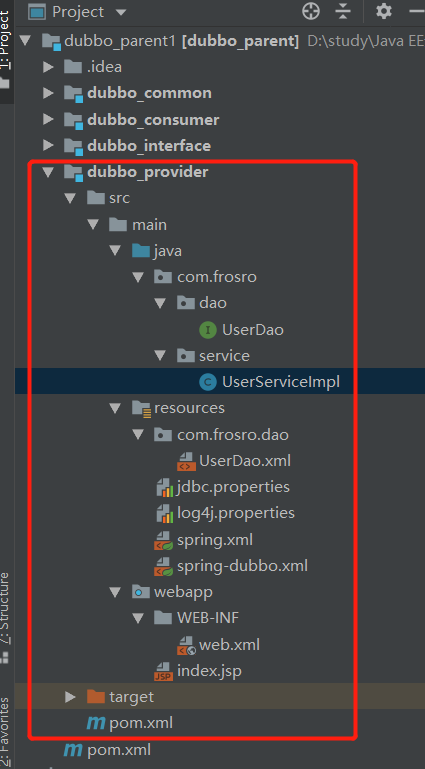

服务提供者模块：

此模块是服务提供者模块，需要在容器启动时，把服务注册到zookeeper,故需要引入springwebmvc,zookeeper及客户端依赖。

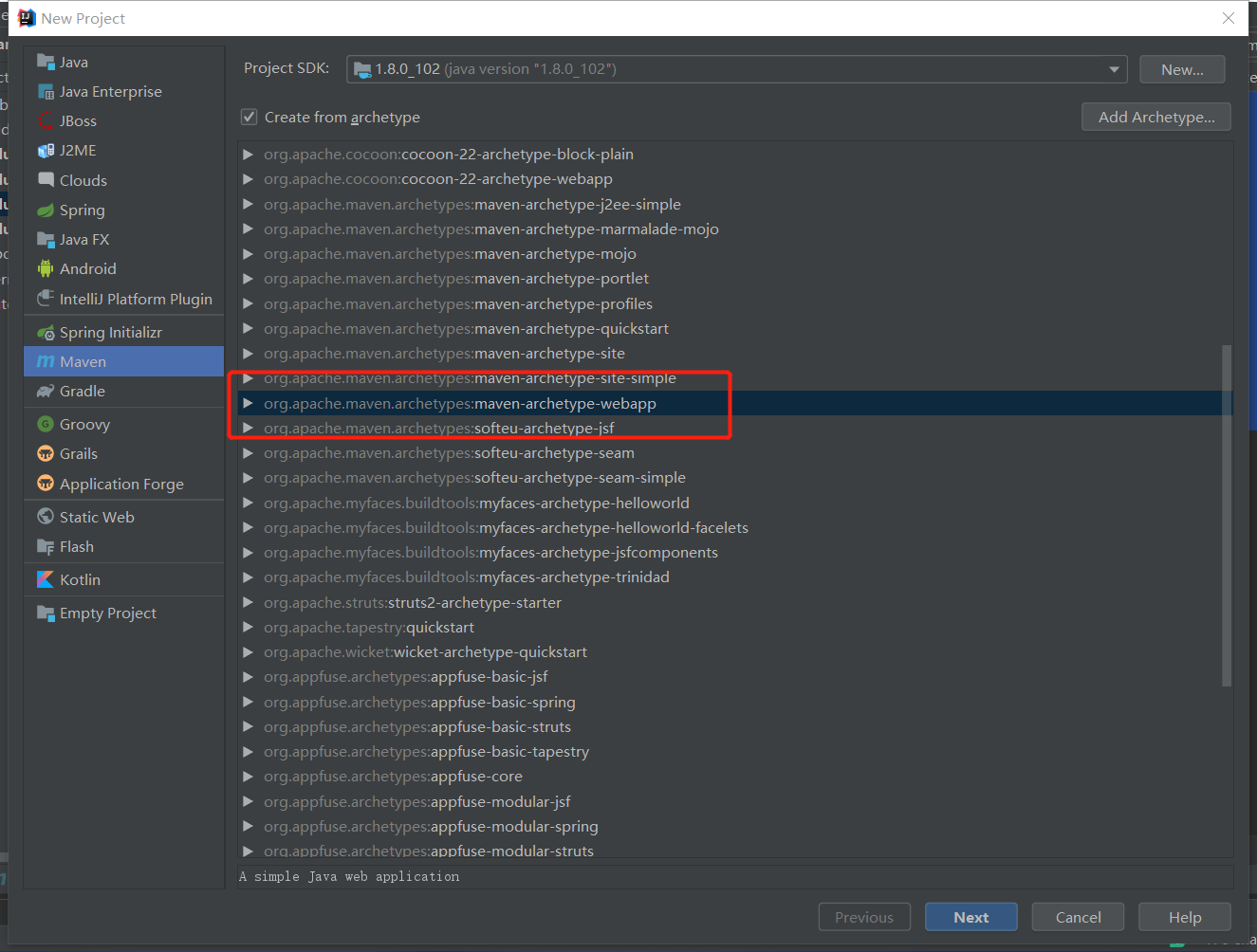

使用webapp模板工程创建子模块dubbo_provider

1

在pom.xml中添加必要依赖：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
<?xml version="1.0" encoding="UTF-8"?>

<project xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://maven.apache.org/POM/4.0.0"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_parent</artifactId>
        <groupId>com.frosro</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>dubbo_provider</artifactId>
    <packaging>war</packaging>


    <dependencies>
        <dependency>
            <groupId>com.frosro</groupId>
<!--            这里导入的dubbo_interface中包含了dubbo_common所以不再导入-->
            <artifactId>dubbo_interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>dubbo_provider</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <path>/</path>
                    <port>8888</port>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>
初始化java资源目录
在java文件夹下创建com.frosro.dao包并创建接口类UserDao：
1
2
3
4
5
6
7
8
9
10
11
12
13
package com.frosro.dao;

import com.frosro.pojo.User;

/**
 * @author sy
 * @data 16:23
 */
public interface UserDao {

    User findById(Integer id);

}
然后在resources资源目录下同样创建com.frosro.dao包并增加UserDao.xml文件
1
2
3
4
5
6
7
8
9
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.frosro.dao.UserDao">
    <select id="findById" resultType="com.frosro.pojo.User" parameterType="int">
        select * from t_user where id=#{id};
    </select>
</mapper>
这里要添加UserService的具体实现，在com.frosro.service下添加UserServiceImpl实现类：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
package com.frosro.service;

import com.alibaba.dubbo.config.annotation.Service;
import com.frosro.dao.UserDao;
import com.frosro.pojo.User;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * @author sy
 * @data 16:30
 */
//@Service 这是springmvc的注解
    @Service// 换成dubbo的service注解，相应xml配置中换成包扫描
public class UserServiceImpl implements UserService {

    @Autowired
    private UserDao userDao;

    @Override
    public User findById(Integer id) {
        return userDao.findById(id);
    }
}
在resources目录下创建其他的一些配置文件：

dubbo的配置文件：spring-dubbo.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo
       http://dubbo.apache.org/schema/dubbo/dubbo.xsd">

<!--    给提供者起个名字-->
    <dubbo:application name="dubbo_provider"/>


<!--     <dubbo:registry address="zookeeper://39.106.92.113:2181"/> -->
    <!--    zk的地址，这里表示的是一个zk集群，如果是单机话，可以写成上面那样-->
    <dubbo:registry protocol="zookeeper" address="192.168.234.130:2181,192.168.234.131:2181,192.168.234.132:2181"/>



<!--    暴露服务的地址    -->
<!--    <dubbo:service interface="com.frosro.service.UserService" ref="userServiceImpl"/>-->
<!--    dubbo的service注解的包扫描，与上面作用一样 -->
    <dubbo:annotation package="com.frosro.service"/>

</beans>
spring的配置文件spring.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--加载属性文件-->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>
    <!--配置数据源-->
    <bean id="druidDataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
    <!--配置SQLSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="druidDataSource"/>
    </bean>
    <!--配置Mapper文件扫描-->
    <bean id="scannerConfigurer" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <property name="basePackage" value="com.frosro.dao"/>
    </bean>
    <!--配置事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="druidDataSource"/>
    </bean>
    <!--事务注解驱动-->
    <tx:annotation-driven></tx:annotation-driven>

    <!--自动扫包-->
    <context:component-scan base-package="com.frosro.service"/>


</beans>

log4j的配置文件 log4j.properties

1
2
3
4
5
6
7
### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.err
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

log4j.rootLogger=debug, stdout

数据库连接的 jdbc.properties

1
2
3
4
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/dubbo
jdbc.username=root
jdbc.password=root

在webapp/WEB-INF下的web.xml内:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Archetype Created Web Application</display-name>
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:*.xml</param-value>
  </context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
</web-app>
提供者的整体文件结构如下：

2

下面创建消费者模块dubbo-consumer：

同样使用webapp的工程模板进行创建

pom.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubbo_parent</artifactId>
        <groupId>com.frosro</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>dubbo_consumer</artifactId>
    <packaging>war</packaging>


    <dependencies>
        <dependency>
            <groupId>com.frosro</groupId>
            <artifactId>dubbo_interface</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>dubbo_consumer</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <path>/</path>
                    <port>9999</port>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

在java目录下创建com.frosro.controller包，并且创建UserController类：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.frosro.controller;


import com.alibaba.dubbo.config.annotation.Reference;
import com.frosro.pojo.User;
import com.frosro.service.UserService;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * @author sy
 * @data 16:23
 */
@Controller
@RequestMapping("/user")
public class UserController {

//    @Autowired
    @Reference //这是dubbo的@Reference标签,代替@Autowired 并且 去掉了xml 中的 dubbo:reference 配置
   public UserService userService;

    /**
     *
     * @param id
     * @return
     */
    @RequestMapping("/findById")
    @ResponseBody
    public User findById(Integer id) {
        return userService.findById(id);
    }

}
在resources文件夹下创建：

spring-dubbo.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo
       http://dubbo.apache.org/schema/dubbo/dubbo.xsd">
    <dubbo:application name="dubbo_consumer"/>
    <dubbo:registry protocol="zookeeper" address="192.168.234.130:2181,192.168.234.131:2181,192.168.234.132:2181"/>


<!--    <dubbo:reference interface="com.frosro.service.UserService" id="userService"/>-->
<!--    开启controller包内的注解扫描,将上面 dubbo:reference 改为注解形式  -->
    <dubbo:annotation package="com.frosro.controller"></dubbo:annotation>
</beans>

spring.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--自动扫包-->
    <context:component-scan base-package="com.frosro.controller"/>

    <!--注解驱动-->
    <mvc:annotation-driven></mvc:annotation-driven>

</beans>
webapp下的web.xml文件：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <display-name>Archetype Created Web Application</display-name>
  <servlet>
    <servlet-name>springMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:*.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>springMVC</servlet-name>
    <url-pattern>*.do</url-pattern>
  </servlet-mapping>
</web-app>
下面启动虚拟机

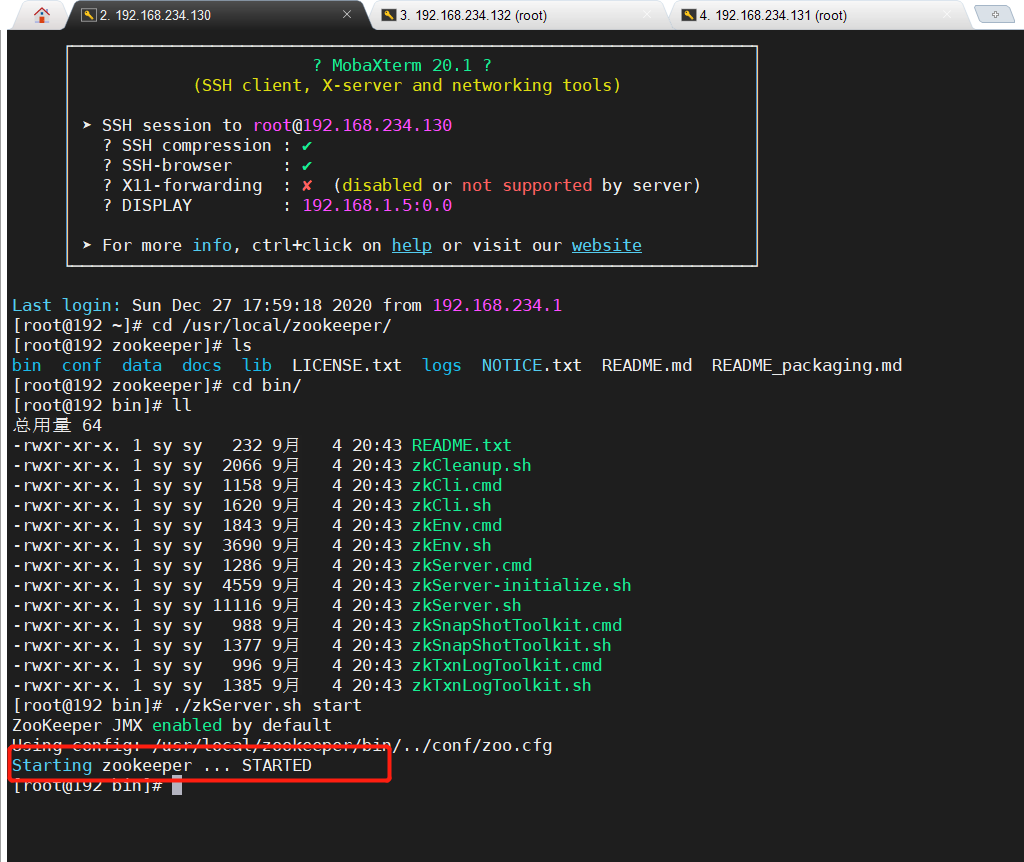

我通过MobaXterm进行连接，开启内部安装的zk集群。

3

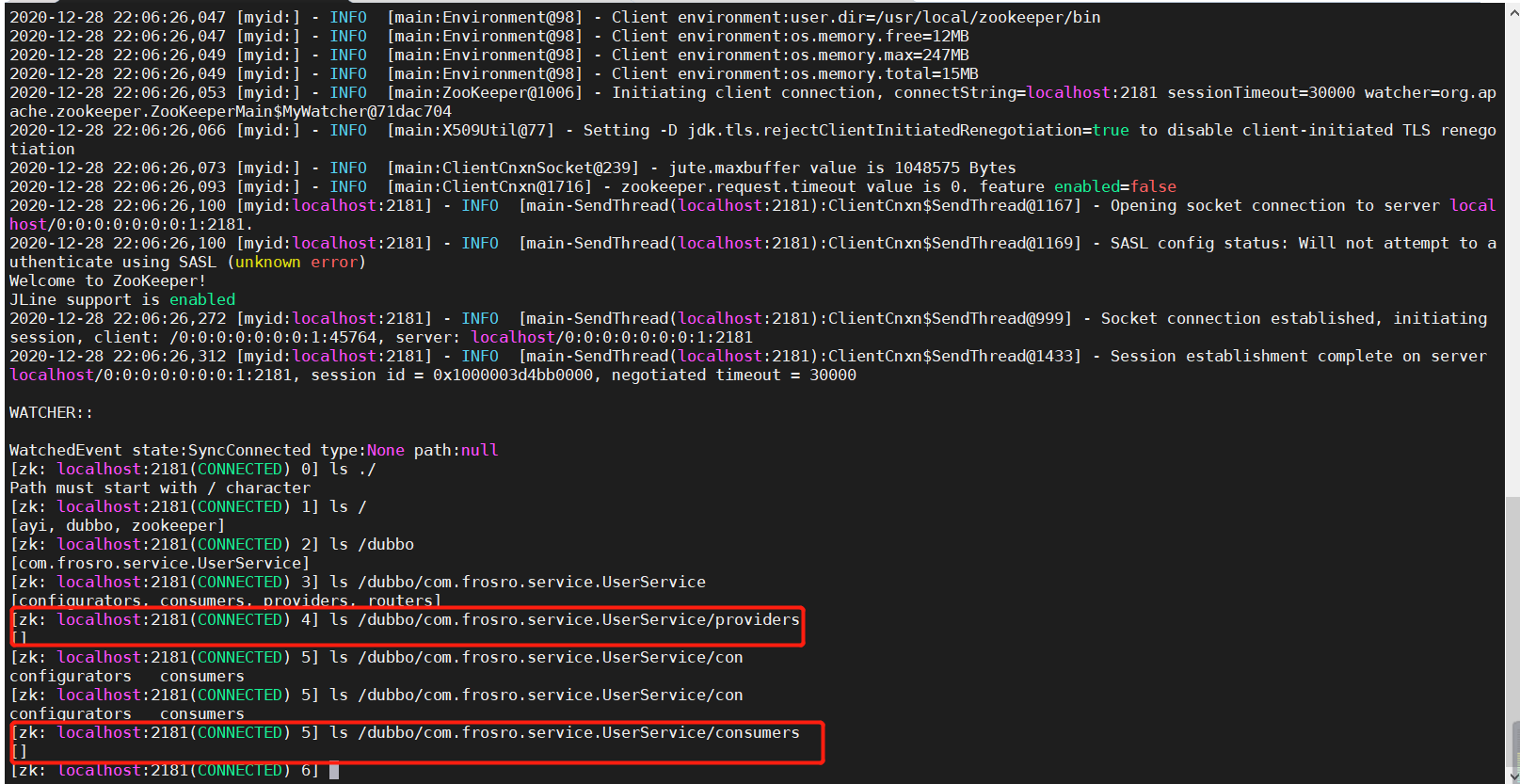

开启后进去zk的客户端

4

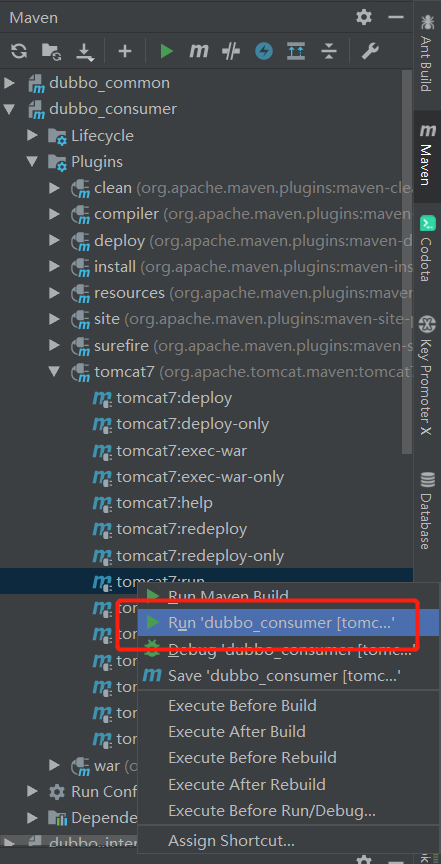

这个时候消费者和提供者内部都是空的，分别启动提供者和消费者的tomcat插件；

5

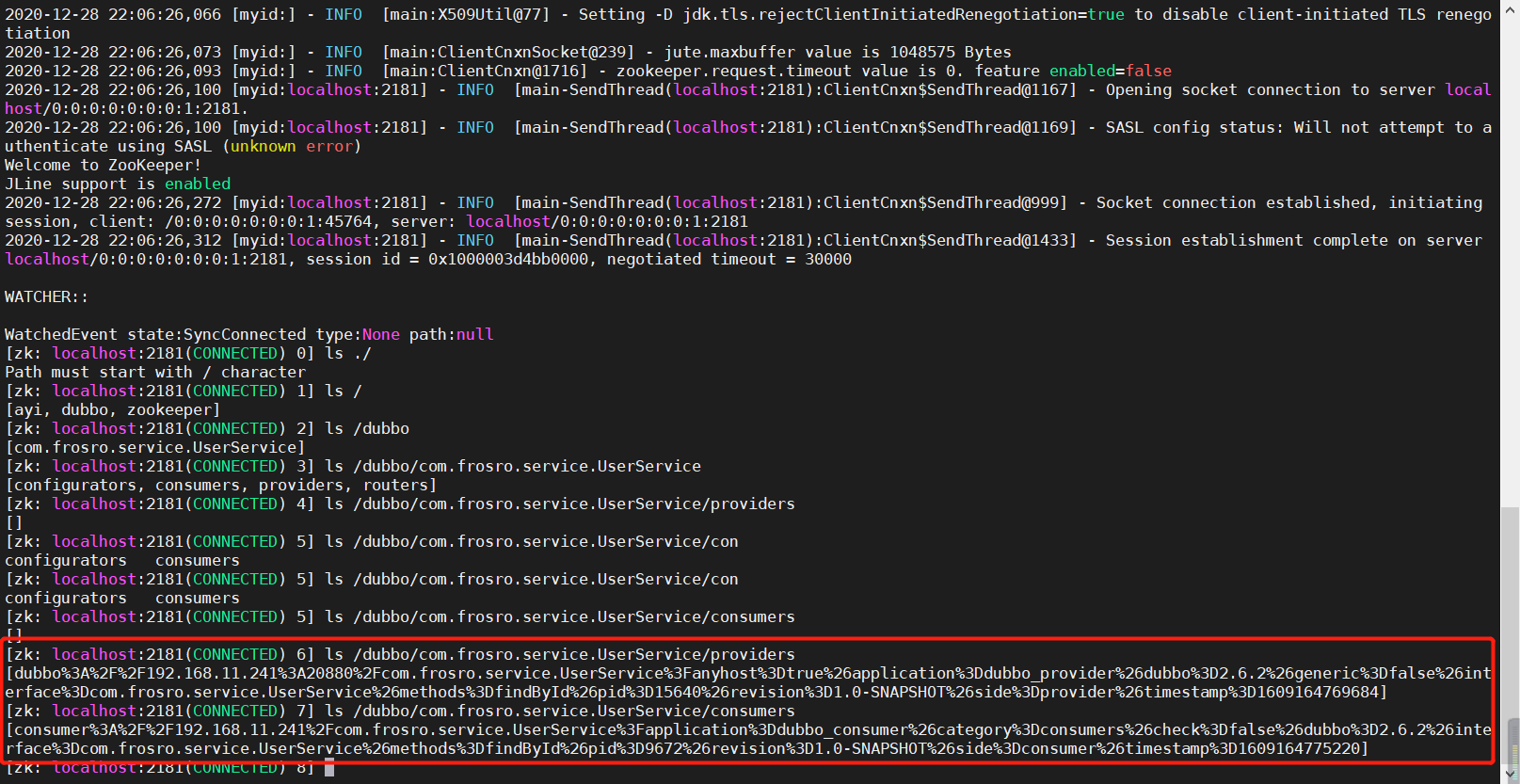

现在可以看到zk上dubbo里有值了

6

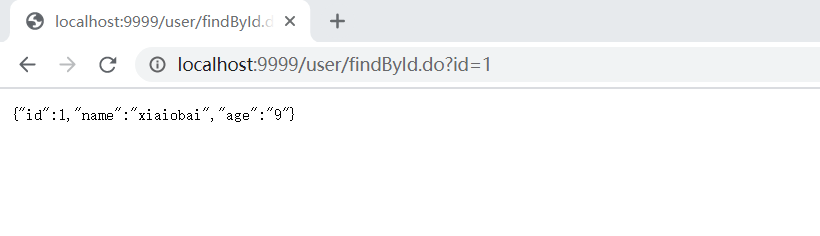

此时我们可以用http://localhost:9999/user/findById.do?id=1访问消费者，可以获取数据库内的值

7

文章作者: Frosro
文章链接: https://frosro.github.io/2020/12/27/Dubbo%E7%9B%B8%E5%85%B3%E7%9F%A5%E8%AF%86%E5%8F%8A%E4%BD%BF%E7%94%A8%E4%B8%80/
版权声明: 本博客所有文章除特别声明外，均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 BETTER LATE THAN NEVER！
框架DubboRPC分布式
打赏
  • 微信
    微信
  • 支付宝
    支付宝
相关推荐
2022-02-08
SpringCloud Alibaba 之 Sentinel（一）
2022-02-26
SpringCloud Alibaba 之 Sentinel（三）
2022-02-10
SpringCloud Alibaba 之 Sentinel（二）
评论
繁
